    9-11 YEAR SUNSPOT CYCLE PROVES THREATENING FOR NEW ENGLAND (NE)!

    Originally prepared: February 10, 2015 (Facebook timeline-post)
    The 2014/15 season is-the-true beginning of-a-cycle... supporting the RETURN OF classic OLD-FASHIONED-WINTER's in NEW ENGLAND! On January 14, 2015, I had posted that all-the-elements would (have the-potential-to) come together... with the return of the old fashioned New England winter, as experienced through most-of-the 1950's, 1960's, & 70's. As we realized the "cold", but had yet to observe a true snowstorm (Nor'Easter). Since-that-post, Boston has recorded it's snowiest 7-day period in-history (during late January 2015), and Hartford, CT. is presently averaging around 8-10°F below normal for the month-of-February. While there are various forms of long range weather guidance, such as NOAA's CFS forecast model... nature itself has already provided us with strong clues. These clues rest with understanding of-the-Sun's 9-11 year sunspot cycle, known as the Schwabe Cycle, which averages to be exactly 10.66 years. Sunspots are temporary dark spots located on the photosphere of-the-Sun, that significantly reduces the temperature within the darkened spot, in-contrast to the outer surrounding of the solar disk. However, the influences go-far-beyond the solar disk through the release of ultraviolet (UV) rays. UV rays (due to highly active "charged" sunspots) fall back on-the-Earth, which has a direct poleward effect. The higher frequency of UV rays acts to "cool" the pole's stratosphere, as the Polar Vortex (PV) remains over-the-Arctic... thus NOT SPLITTING, dropping south, to influence middle latitudes of-the-Earth. During the period of a Solar Maximum, is when this activity peaks... the Winter of 2011/12 was a Solar Maximum. However, we are now heading toward a Solar Minimum (the five-year-period between a solar maximum), which allows for a reverse effect... due to virtually no sunspot activity on the solar disk. In return, the pole's stratosphere "warms", encouraging "Blocking High Pressure" in northern latitudes as the Polar Vortex (PV) SPLITS, becoming significantly displaced from the pole as it drops south in-latitude (*has occurred during this 2014/15 Winter season). Of extreme interest, the sun will truly enter a Solar Minimum around the 2015/16 Winter season, and have strong probability to-be-deep within a solar minimum during the 2016/17, 2017/18, 2018/19, 2019/20, & 2020/21 Winter seasons... following this highly cyclical cycle!

    Saturday, January 24, 2015

    FINAL THOUGHTS ON THE 2014/15 WINTER SEASON!

    Originally prepared: January 14-15, 2015 (Facebook timeline-post)
    A further in-depth look at the 2014/15 Winter Season! Well, changes are... and certainly have occurred. The image below (although-not-current) depicts - MAJOR - changes that have occurred with the 500-millibar Height Pattern over North America (and the Northern Hemisphere as-a-whole). What has happened? The most noteworthy change from December is-with-the Polar Vortex (PV), itself. The polar vortex is an intense (cold) upper-level low pressure system that originates over the Arctic / North Pole, and this-is-where the PV stayed for most of December. However, through poleward stratospheric changes "warming"... the PV SPLIT into two (2) separate lobes and dropped south, with one lobe falling over North America, and the other over Eurasia. Through these changes, the pole moderates... as "Blocking High Pressure" becomes established across northern latitudes (i.e. Arctic Oscillation "AO" becomes increasingly negative), ejecting the upper-level low pressure system from the Gulf of Alaska & replacing-it with intensifying High Pressure (notice the greenish shade toward the Gulf of Alaska on-the-image, indicating moderating anomalies, which is a significant change from December). It's very IMPORTANT to understand that during most of-the-classic old fashioned winter's experienced in New England during the 1950's, 60's, & 70's the PV almost always split... if this doesn't take place, you end-up with a longwave weather pattern similar to-that-of December 2014, "progressive", which was experienced through most-of-the absent winter's of-the-1990's! Now that the PV has split, what will happen? The 500-millibar Height Pattern is-open to configure itself to repeat the 1950's, 60's, & 70's all-over-again... and will attempt to do just that on-or-about January 21st, before this time frame there will be a temporary moderation... indicating CHANGE. What does this mean? We have now certainly experienced the "cold" but have yet to combine that with true snowstorms (Nor'Easter's)... on-or-about this date (1/21) is when all-the-elements have the potential to-come-together (i.e. North Atlantic Oscillation "NAO" also becomes negative), thus "blocking" / lifting the jet-stream up along the U.S. Eastern seaboard, promoting East coast cyclogenesis . This change will make run at balancing the December blowtorch, as January 2015 should average "at least" 1-2° below normal in-temperature, however beyond this... with the exception of a brief mild spell around the second week-of-February, both February & March 2015 have a strong probability of averaging below normal in-temperature, considering the above-said-factors. In closing, the Winter Season of 2014/15 has strong potential of averaging slightly below normal in-temperature overall, with above normal snowfall through much-of-New England. What is average snowfall? For example: ADAMS / NORTH ADAMS - around 92.0" average annual snowfall. Winter 2014/15: potential 100.0"+ for-the-season as-a-whole. BOSTON - around 43.0" average annual snowfall. Winter 2014/15: potential 50.0"+ for-the-season as-a-whole.

    Of interest: In direct relation to-the-above stated post... the image below depicts a solar disk that is trending much less active in-terms of "sunspots", with only four (4) observed sunspots as of January 15, 2015. What is the-relation-here? The more active the solar disk in-relation to sunspot activity, the higher frequency of ultraviolet (UV) rays fall back on-the-Earth. Ultraviolet (UV) rays have a direct influence, which encourages poleward stratospheric "cooling"... in-return the Polar Vortex (PV) DOES NOT SPLIT, as the pole stays cold and stormy with extremely "mild" conditions experienced in-middle-latitudes. This was a common theme during the majority of absent winter's of-the-1990's in New England!

    Friday, January 23, 2015

    A LOOK BACK AT DECEMBER 2014!

    Originally prepared: January 1, 2015 (Facebook timeline-post)
    Why was the month of December-a-blowtorch? December 2014 will be remembered for anything but what resembled winter in New England. While the-first-half of-the-month was thought to be initially mild, the-second-half of-the-month went very wrong. Most reporting stations throughout New England averaged 3-5° above normal for the month as a whole, which is significant! Why so mild? The images shown depict an upper level & surface low pressure system in the Gulf of Alaska. This low was thought to weaken and drift west around mid December, this didn't take place. What does the Gulf of Alaska Upper Level Low mean for New England? Simple, an absent winter for the duration of time the low resides in the gulf... due to displacement of the northern branch of the jet-stream farther to-the-south over the Pacific. The upper level low encourages much stronger westerlies as the jet stream is displaced to-the-south of it's spinning circulation.

    Monday, December 23, 2013

    DECEMBER 23, 2013 - WHERE IS THE NORTH ATLANTIC OSCILLATION HEADED?

    official product of... New England NAO

    NAO GEFS Index Forecast - December 23, 2013

    The North Atlantic Oscillation (NAO)
    GFS MRF Ensemble Indice Forecast from
    NOAA's Climate Prediction Center (CPC) is currently weakly Positive. The GFS Ensemble Indice Forecast indicates that the NAO will be very weakly Positive December 24-27. The Ensemble Indice Forecast indicates the NAO will be neutral to very weakly Negative December 28-31. The GEFS later indicates that the NAO will trend weakly Negative January 1-7. The NAO will then trend neutral to weakly Positive January 8-15.
    The NAO Operational GFS Indice Forecast from CPC is also currently weakly PositiveThe GFS Indice Forecast indicates that the NAO will be very weakly Positive December 24-27. The Operational Indice Forecast indicates the NAO will be neutral to very weakly Negative December 28-31. The GFS later indicates that the NAO will trend weakly Negative January 1-7. The NAO will then trend neutral to weakly Positive January 8-15.
    NOTE: Indice Forecasts have been modified, due to Forecaster's understanding of the current Longwave pattern.


     AO GEFS Index Forecast - December 23, 2013
    AO GEFS Index Forecast - December 23, 2013









    The Arctic Oscillation (AO)
    GFS MRF Ensemble Indice Forecast from CPC is currently moderately PositiveThe GFS Ensemble Indice Forecast indicates that the AO will be very weakly Positive December 24-27. The Ensemble Indice Forecast indicates the AO will be neutral to weakly Negative December 28-31. The GEFS later indicates that the AO will trend increasingly Negative January 1-7. The AO will then trend neutral to increasingly Positive January 8-15.
    The AO Operational GFS Indice Forecast from CPC is currently moderately Positive.  The GFS Indice Forecast indicates that the AO will be very weakly Positive December 24-27. The Operational Indice Forecast indicates the AO will be neutral to weakly Negative December 28-31. The GFS later indicates that the AO will trend increasingly Negative January 1-7. The AO will then trend neutral to increasingly Positive January 8-15.
    NOTE: Indice Forecasts have been modified, due to Forecaster's understanding of the current Longwave pattern.


    PNA GEFS Index Forecast - December 23, 2013









    The Pacific-North American Oscillation (PNA)
    GFS MRF Ensemble Indice Forecast from CPC is currently neutralThe GFS Ensemble Indice Forecast indicates that the PNA will be neutral to very weakly Positive December 24-27. The Ensemble Indice Forecast indicates the PNA will be weakly Positive December 28-31. The GEFS later indicates that the PNA will trend increasingly Positive January 1-7. The PNA will then trend neutral to weakly Negative January 8-15.
    The PNA Operational GFS Indice Forecast from CPC is currently neutralThe GFS Indice Forecast indicates that the PNA will be neutral to very weakly Positive December 24-27. The Operational Indice Forecast indicates the PNA will be weakly Positive December 28-31. The GFS later indicates that the PNA will trend increasingly Positive January 1-7. The PNA will then trend neutral to weakly Negative January 8-15.
    NOTE: Indice Forecasts have been modified, due to Forecaster's understanding of the current Longwave pattern.












    The Eastern Pacific Oscillation (EPO)
    GFS MRF Ensemble Indice Forecast from
    NOAA's Earth System Research Laboratory (Physical Sciences Division) and NCEP, is currently weakly Negative. The GFS Ensemble Indice Forecast indicates that the EPO will be weakly Negative December 24-26. This indice forecast then indicates that the EPO will be increasingly Negative December 28-31. The GEFS later indicates that the EPO will trend weakly Negative January 1-6. The EPO will then trend neutral to weakly Positive January 7-13.

    The Western Pacific Oscillation (WPO)
    GFS MRF Ensemble Indice Forecast from NOAA's ESRL/PSD and NCEP, is currently moderately NegativeThe GFS Ensemble Indice Forecast indicates that the WPO will be moderately Negative December 24-26. This indice forecast then indicates that the WPO will be increasingly Negative December 28-31. The GEFS later indicates that the WPO will trend weakly Negative January 1-6. The WPO will then trend neutral to weakly Positive January 7-13.


    AAO GEFS Index Forecast - December 23, 2013









    The Antarctic Oscillation (AAO)
    GFS MRF Ensemble Indice Forecast from CPC is currently neutralThe GFS Ensemble Indice Forecast indicates that the AAO will be neutral December 24-27. The Ensemble Indice Forecast indicates the AAO will be neutral to weakly Negative December 28-31. The GEFS later indicates that the AAO will trend increasingly Negative January 1-7. The AAO will then trend neutral to increasingly Positive January 8-15.
    NOTE: Indice Forecasts have been modified, due to Forecaster's understanding of the current Longwave pattern.

    Indice Forecasts are for Extended & Long Range Guidance only, and are not meant to be taken verbatim. Please consult NWS Albany, N. Y. / NWS Taunton, or the NWSFO covering your region... for official short-term regional zone forecasts.

    EXTENDED OUTLOOK:
    MERRY
    CHRISTMAS!
    Thoughts to keep-in-mind, the overall December "transition" discussed in the
    2013/14 Winter Outlook... is well-under-way. Established High Latitude Blocking episodes appear eminent as we enter January 2014!

    Updated: January 2, 2014
    WPO GEFS Index Forecast - January 2, 2014

    WHAT CAUSED THE PAST WINTER BLAST!

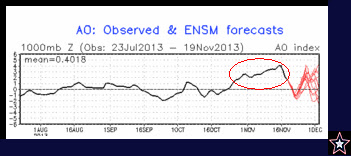

    As discussed in the 2013/14 Winter Outlook, it was very clear that a resurgence in Solar Activity due to increased sunspots on the magnetically active solar disk in
    mid-to-late October... was responsible for the transition to an overwhelmingly
    Positive Phase of the Arctic Oscillation (AO) &
    North Atlantic Oscillation (NAO) from the beginning-of-November through most
    all-of-December. However, there was a real Winter blast for much-of-the first half of December that led to a coastal storm on Saturday, December 14, 2013. It is very important to note that while the AO & NAO did not favor such amplification of the 500-millibar Height Pattern, the
    Western Pacific Oscillation (WPO) above, and Eastern Pacific Oscillation (EPO) where predominantly Negative (circled-in-black above) from mid-to-late November through mid December. This meant that cold air was tapped and drawn southeast from North-central Canada, due to an expanding area of High pressure over the Gulf of Alaska. The WPO / EPO are highly influenced by the

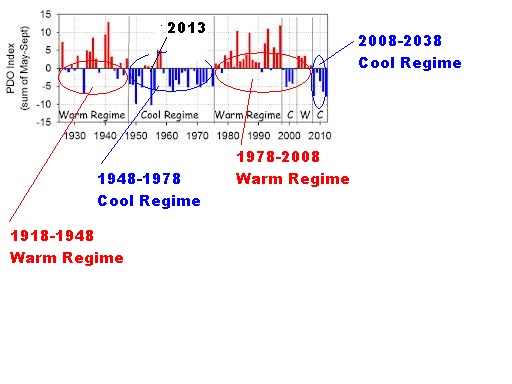

    Pacific Decadal Oscillation (PDO)... which became slightly Positive during the Fall,  meaning that Pacific Sea Surface Temperature (SST) anomalies are warmer than normal, encouraging Blocking over the eastern Pacific.
    The -WPO / -EPO pattern collapsed due to lack-of-Teleconnection support in association to changes with the Madden Julian Oscillation (MJO)... as the enhanced area of tropical convection over the equatorial Pacific entered Phase 5-6, collapsing the ridge of High pressure over the eastern Pacific, which strongly encouraged the true effects of an overwhelmingly
    +AO / +NAO signature as New England experienced a classic blow-torch from December 20-23, 2013. Of interest, while the WPO & EPO where initially Positive from late October into the beginning of November... which was the peak-of-sunspot resurgence, the AO & NAO remained Positive beyond, due to extreme sensitivity to solar activity. The more active the sun, the more of a driver it is... influencing the Earth's stratosphere (poleward), where pronounced cooling occurs. Therefore, the orientation of the jet-stream keeps the heart of the Polar Vortex (PV) at the
    North Pole...
    encouraging an overall progressive pattern (with short-lived shots of cold air) in middle latitudes with a highly Positive Phase of the Arctic Oscillation (AO) and
    North Atlantic Oscillation (NAO).

    PUNCH 1! BEGINNING OF CHANGE...
    GFS 1000-500 hPa Thickness - January 2, 2014
    Current 1000-500 hPa Thickness show a positively-tilt trough over the
    Mid-Atlantic, with a defined Polar Vortex (PV) (circled-in-white) over Quebec... marking the transition to a Negative Arctic Oscillation (AO). However, much of the southeastern United States... especially Florida, is experiencing above normal temperatures due to the North Atlantic Oscillation (NAO) only falling to around neutral. The neutral NAO allows for the southeast ridge to maintain it's identity, and in-return promotes a significant moderation for New England in-advance of Arctic fronts... due to a strong south-southwest flow in-advance of the frontal passage. This, for example, will occur on Monday, January, 6th. Aside from this, the period of January 3-10 will feature below to well below normal temperatures overall... with moderate-to-high potential of Miller Type B coastal storm development. This period will mark the true beginning of the Winter change, especially with the
    Arctic Oscillation (AO).


    LONG RANGE THOUGHTS:

    THE SUN & SOLAR CYCLE 24...
    NASA Solar Activity as of January 2, 2014

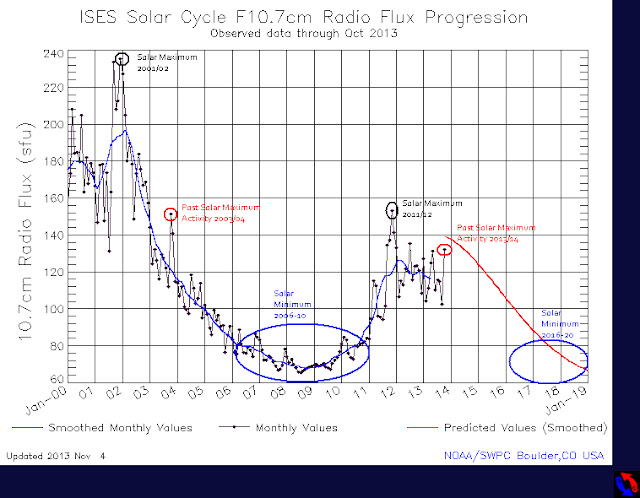

    While Solar Activity, in-terms of active sunspots, has lessened since November 2013... the extreme western quadrant of the sun remains active. Most of the solar disk, however, is becoming quiet or falling-to-sleep... which is important for sustained High Latitude Blocking episodes, and will be a significant factor in-the-years-to-come. It is very important to remember, on January 4, 2008 we entered Solar Cycle 24. While Solar Cycle 23 was highly active
    in-terms of sunspot activity, Solar Cycle 24 is trending much-less-active (as seen above)... especially since the actual observed Solar Maximum in 2011/12. Had this sunspot activity took place a decade ago, the out-come on the overall 500-millibar Height Pattern in the Northern Hemisphere... would have had a far greater impact.
    *A note to viewers, the Fall 2013 resurgence in sunspot activity should NOT be confused with the
    2011/12 Solar Maximum... as there is no comparison in the amount of UV Rays that hit the Earth now, in-contrast to then. Which is (in-part) why we will be experiencing the
    PUNCH-of-Winter!

    MJO & BRIEF THAW... PATTERN RELOAD
    MJO GEFS Forecast - January 2, 2014
    The Madden Julian Oscillation (MJO) will emerge in Phase 6, from neutral over the western Pacific during the next 7-10 Days. This will play a role in temporarily shifting the ridge/trough axis over the eastern Pacific, encouraging a +WPO / +EPO  / -PNA influence, promoting the return to a +AO / +NAO Teleconnection January 11-18. During this period there will be a "January Thaw", temperatures will rise to above-to-much-above normal levels briefly along with increased risk of rainfall. This will be due to the shifting ridge/trough axis encouraging a southerly flow at all levels of the atmosphere in
    New England, as the AO & NAO return Positive.


    PUNCH 2! COMPLETE TRANSITION...
    NAO GFS Index Forecast - January 2, 2014
      The combined influence of significantly reduced sunspot activity... encouraging pronounced High Latitude Blocking as downward propagation of Poleward
    Sudden Stratospheric Warming (SSW) reacts, along with the continued forward propagating Phase 6-7 Madden Julian Oscillation (MJO) influence over the western Pacific, will reload the 500-millibar Height Pattern. This, however, will be a complete pattern transition... where a highly amplified -WPO / -EPO / +PNA Teleconnection, will drive a classic
    -AO / -NAO couplet over eastern North America as the Polar Vortex (PV) returns to east-central Canada around January 20-22.
